Shimano 105 Front Derailleur Cable Installation

To adjust a shimano front derailleur start by making sure it sits at 1 3 millimeters above the large chain ring.

Shimano 105 front derailleur cable installation. A shimano 105 is a bicycle gear shifter designed for a road bike. Installation installation of the front derailleur using a band adapter sm ad91 3 when the adjustment is complete tighten the clamp bolt. Tightening torque 5 7 n m installation of the front derailleur using a band adapter sm ad91 use a support bolt even when installing the front derailleur using a band adapter sm ad91. The shifter incorporates two cables one that operates the brake and one that controls the derailleur.

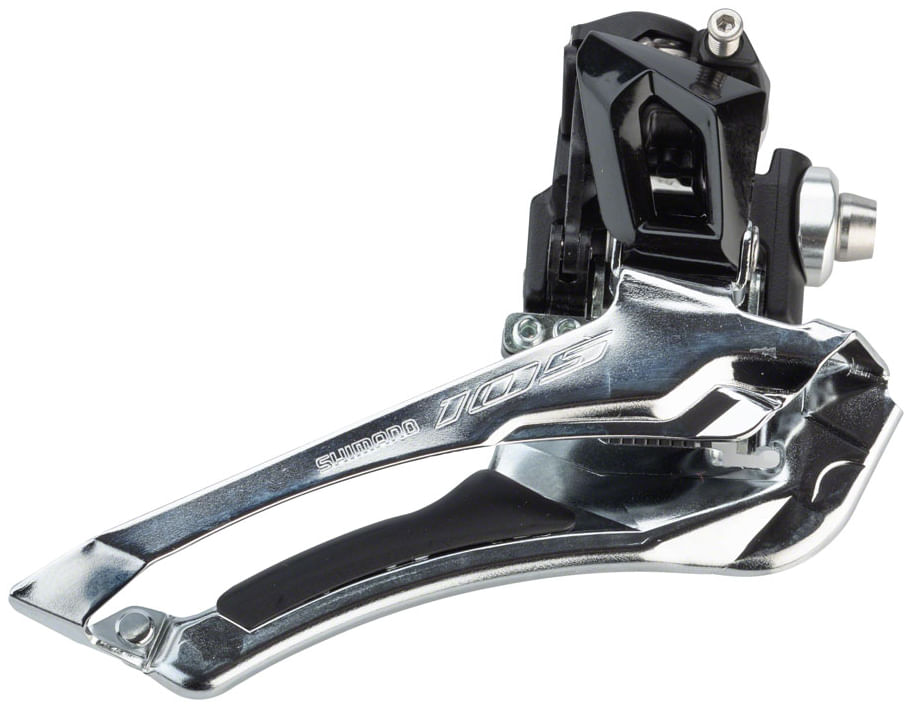

Use the cable cutter to cut the cable 1 to 2 cm past the bolt and use pinch an end cap on the end. Route the cable back through the cable routing on the underside of the bottom bracket and back into the cable fixing bolt on the derailleur. It is available in silver and black and braze on and clamp mountings. Shimano 105 front derailleur brazed on mount road 2x11 speed the new toggle construction on the shimano 105 r7000 front derailleur incorporates an integrated cable tensioner and an optimized cage design that is compatible with disc brake road bikes.

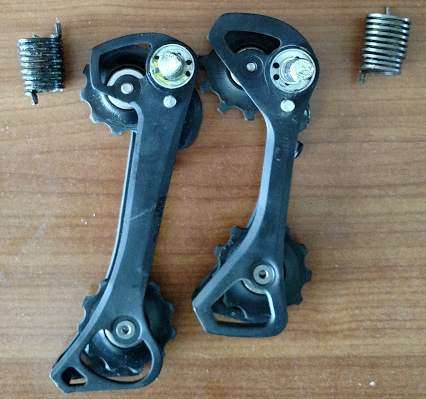

The derailleur is the mechanism that moves the chain to a given sprocket. Shimano 105 front derailleur clamp band mount road 2x11 speed the new toggle construction on the shimano 105 r7000 front derailleur incorporates an integrated cable tensioner and an optimized cage design that is compatible with disc brake road bikes. The derailleur cable is also known as a shifter cable. Use needle nosed pliers to hold the cable tight and use a 5 mm hex key to tighten the cable fixing bolt.

English dm rafd001 02 dealer s manual road mtb trekking city touring comfort bike urban sport e bike front derailleur dura ace fd r9100 ultegra fd r8000 105 fd 5801 procedures for cable tension adjustment and top adjustment differ from those of previous models.
